Description
Individually assembled by hand in Nashville, TN USA.

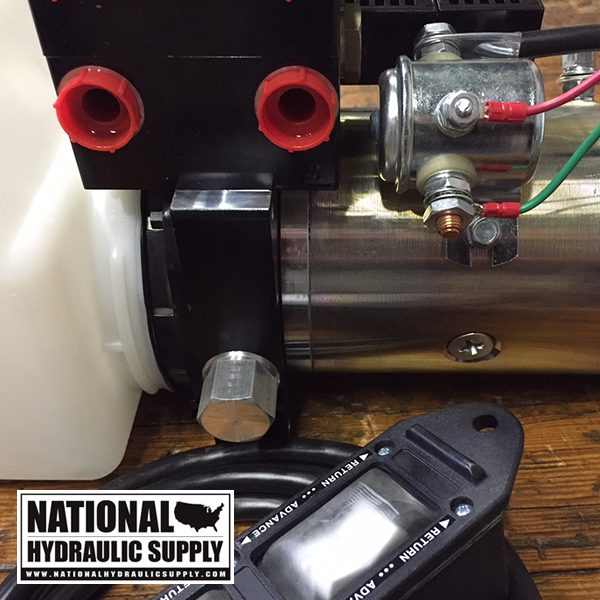

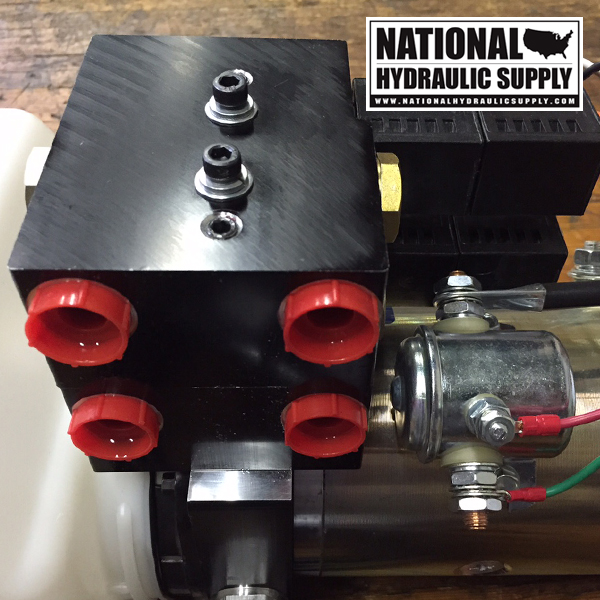

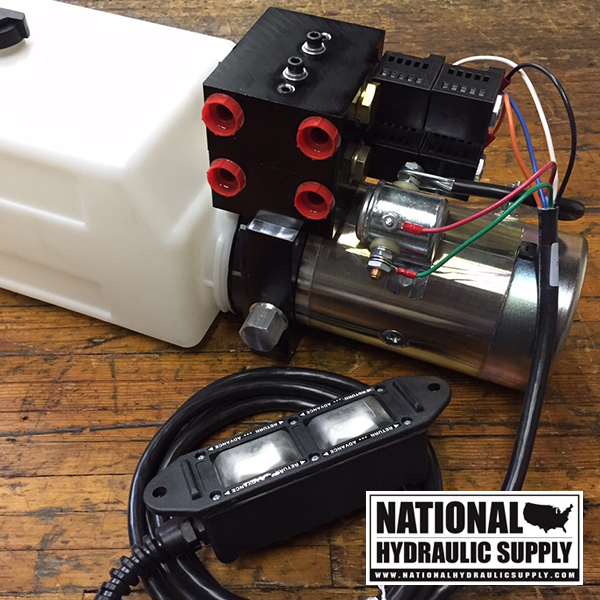

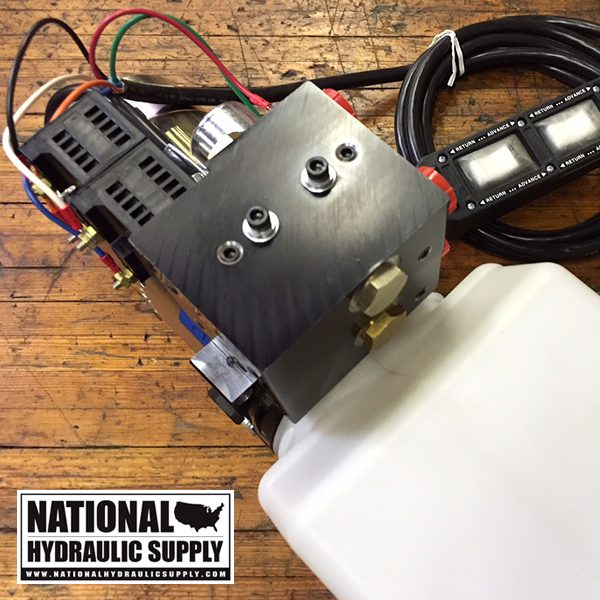

This compact SPX Stone/Fenner Dual-Function, Double-Acting Hydraulic Power Unit comes with a 2-Gal. plastic reservoir. These are reliable and durable DC units for use with tow trucks, wreckers, rollbacks, roll offs, salvage vehicles, jacks, dump trailers, cranes, hydraulic booms, snow plows, groomers, lift gates, presses, and a variety of other applications where 2 separate functions are required. Power up and power down, extend and retract, this unit offers the flexibility of one central pressure source controlling 2 actions. The unit is ready to go, right out-of-the-box.
– 12VDC Electric Motor (Standard Duty)
– Double-Acting Power Up / Power Down or Extend / Retract for 2 Separate Functions
– 2 Gallon Plastic Reservoir
– Gear Pump

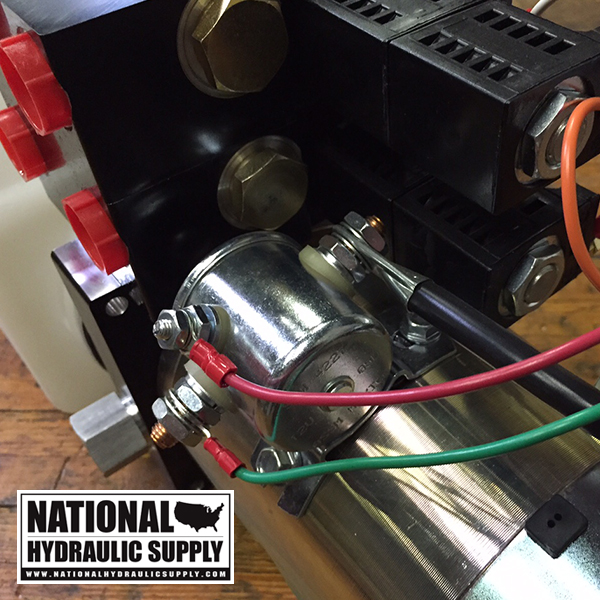

– 12V Solenoid Start Switch
– Dual-Function 6-Wire Pendant Controller
– Compact Size (21″ Long x 7″ Wide x 9″ High)
The unit is shipped with a high pressure adjustable relief valve which is set at roughly 2500 PSI (higher or lower relief pressures are available). This unit generates roughly 1.4 GPM at its current settings. The unit should not have to be adjusted from it’s “out-of-the-box” pressure for the majority of applications.
Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is our standard dual-function, double-acting unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications. Contact us for details.
