Description

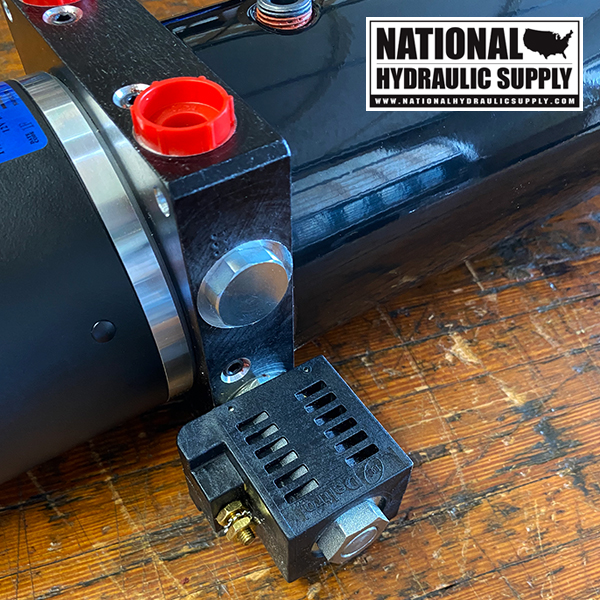

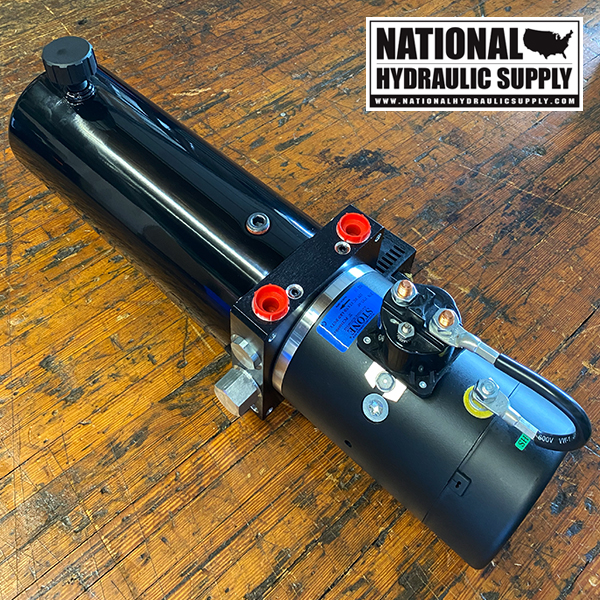

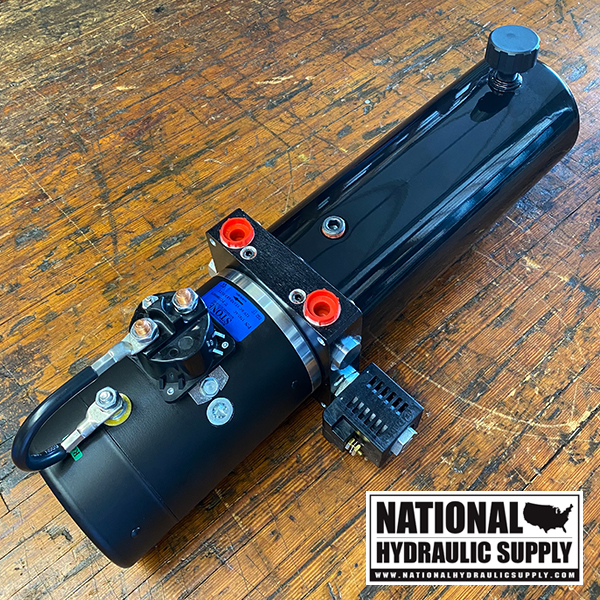

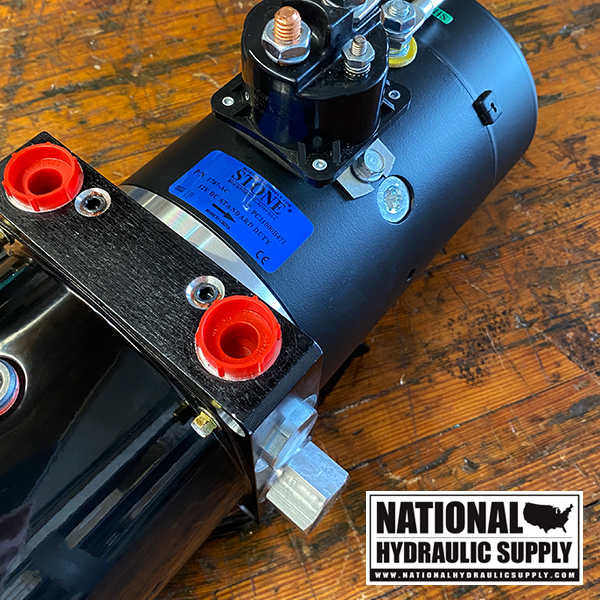

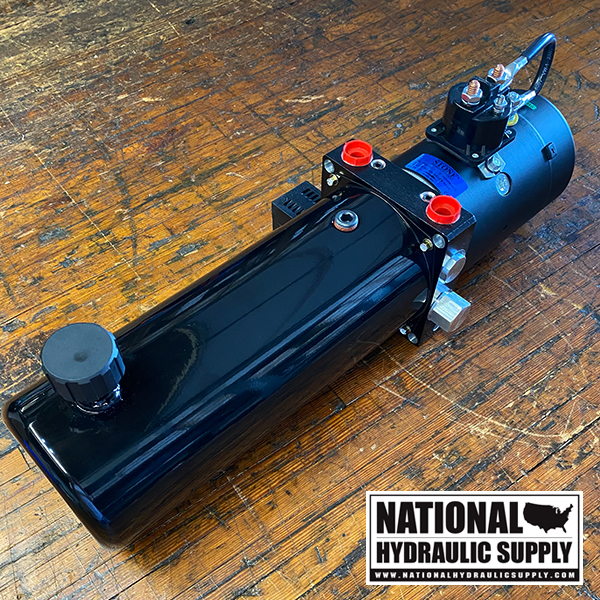

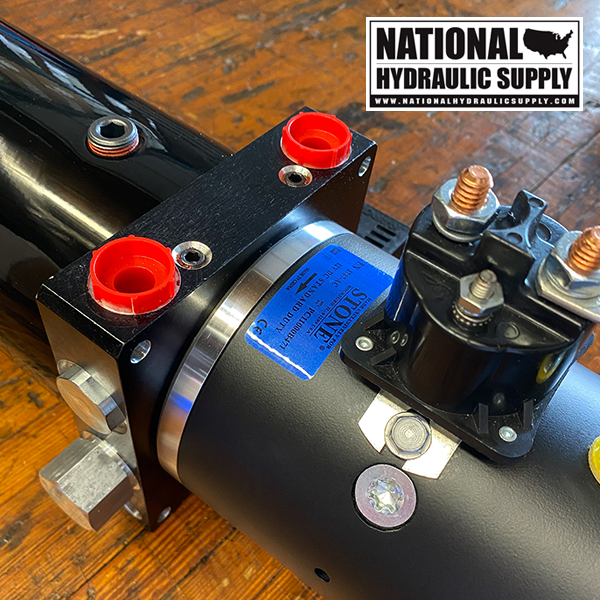

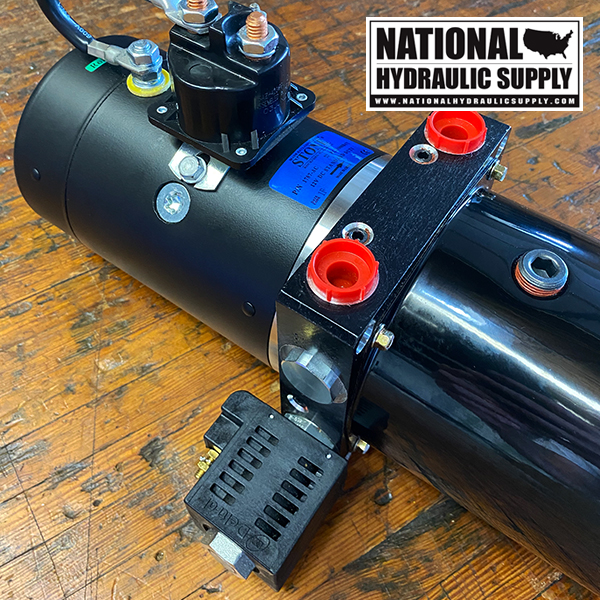

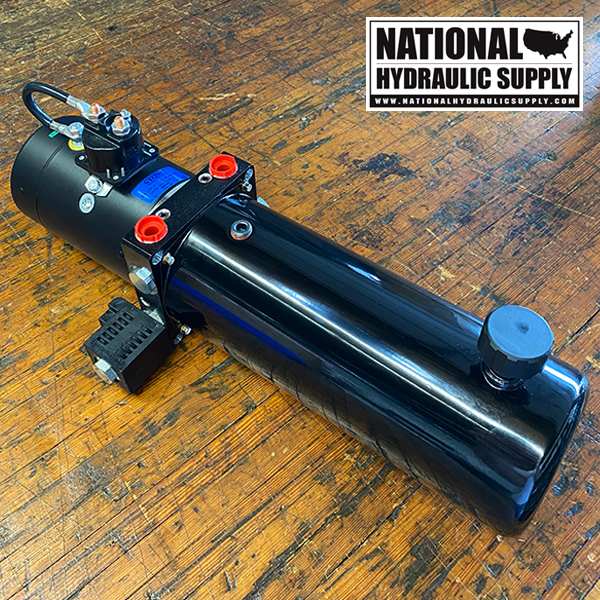

SPX Stone/Fenner 12V DC solenoid-operated power up/power down hydraulic bale spike power unit. Designed primarily to operate tines which pick up round bales. This unit incorporates a 2-position, 4-way cartridge valve & double pilot-operated checks to control a double-acting cylinder, to lift-hold-lower the bale.

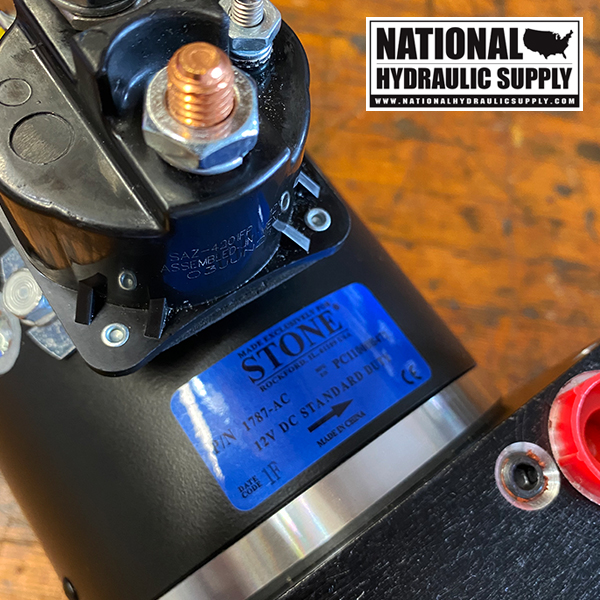

– 12VDC Standard Duty Electric Motor (1787-AC)
– Power Up / Power Down
– 3-Qt. Steel Reservoir
– AFC Series Gear Pump
– 12V Solenoid Start Switch
– 2500 PSI (Adjustable Relief)
The unit is shipped with a high pressure adjustable relief valve which is factory set at 2500 PSI.
Pendant controller available, but sold separately (KG12).
